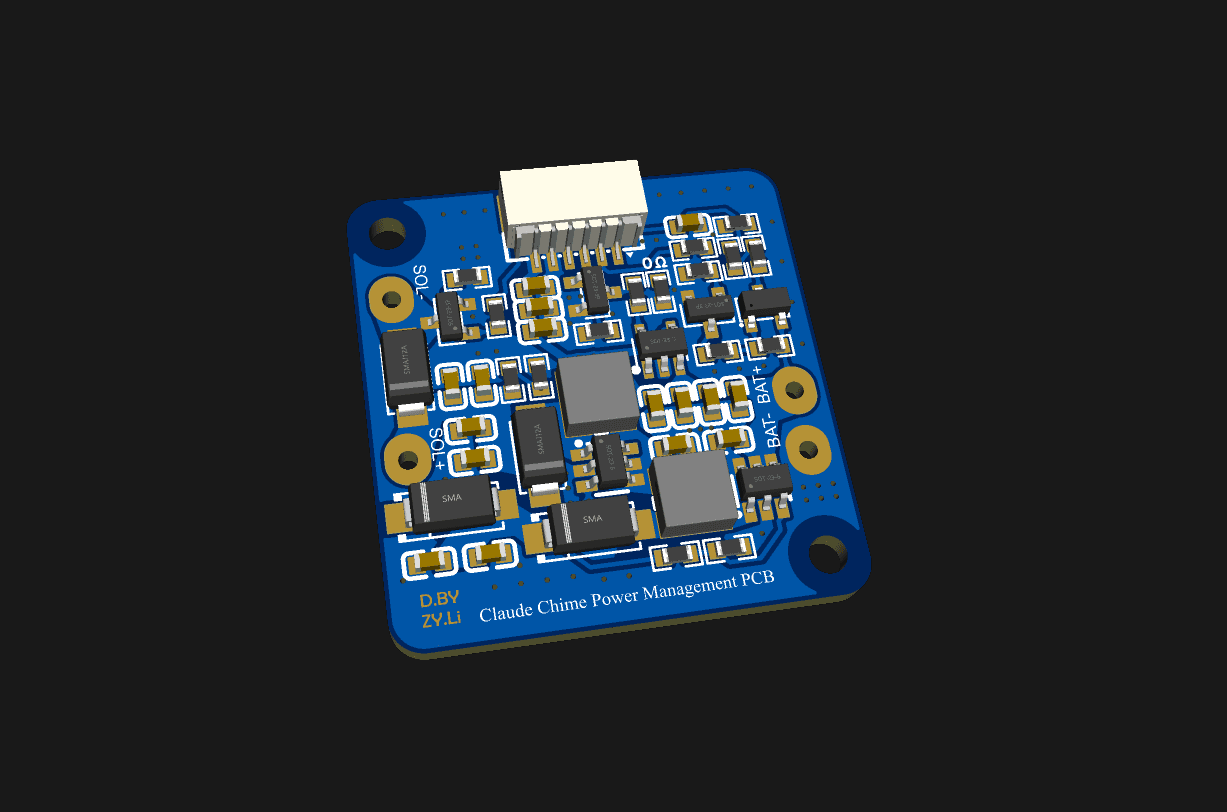

Claude Chime Power BoardClaude Chime 电源板

Status状态: Commissioned Hardware委托硬件项目
Timeline时间: 2026.04 - 2026.052026.04 - 2026.05

For an independent hardware commission from Accele AI, I designed and hand-assembled the ESP32 peripheral power board for Claude Chime. The roughly 28 × 27 mm PCB combines single-cell charging, two separate boost rails, on-demand battery-voltage sensing and a 5 V push-pull solenoid driver. I completed basic bring-up and the software handoff on the only V1.0 spin, and the client's firmware engineer later reported normal complete-device operation.受 Accele AI 委托，我独立设计并手工焊接了 Claude Chime 的 ESP32 外围电源板。约 28 × 27 mm 的 PCB 上有单节锂电池充电、两路独立升压、按需接通的电池电压采样和 5 V 推拉式电磁铁驱动。V1.0 一次打板，我完成了基础上电和软件交接，客户固件工程师随后反馈整机运行正常。

PCBPCBPower Electronics电力电子ESP32-S3ESP32-S3

Case study + public files项目记录 + 公开文件View case study查看项目记录

Cirro Phase-Change Cooling Controllers卷云相变散热器控制系统

Status状态: Completed Internship Project已完成实习项目
Timeline时间: 2025.11 - 2026.052025.11 - 2026.05

At Juanyun, I independently completed BaseUnit and three-board ACUnit hardware, firmware, and integration, then continued into automatic control and maintenance. The company team performed the later refrigeration tests.在卷云实习期间，我独立完成 BaseUnit 与三板 ACUnit 的硬件、固件和整机联调，随后继续参与自动控制与维护。后期完整制冷测试由公司团队执行。

STM32STM32PCBPCBC/C++C/C++

Case study + public files项目记录 + 公开文件View case study查看项目记录

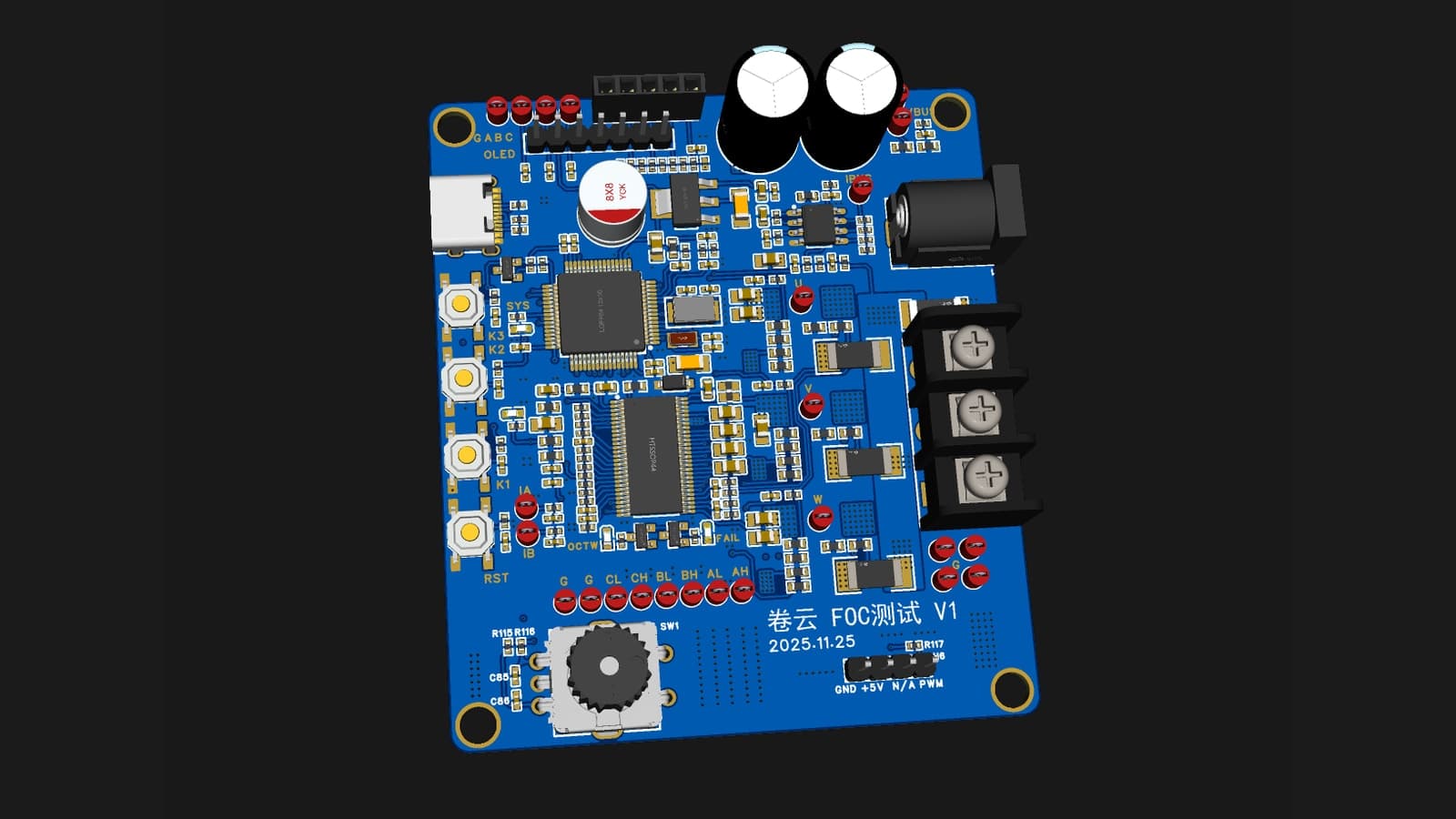

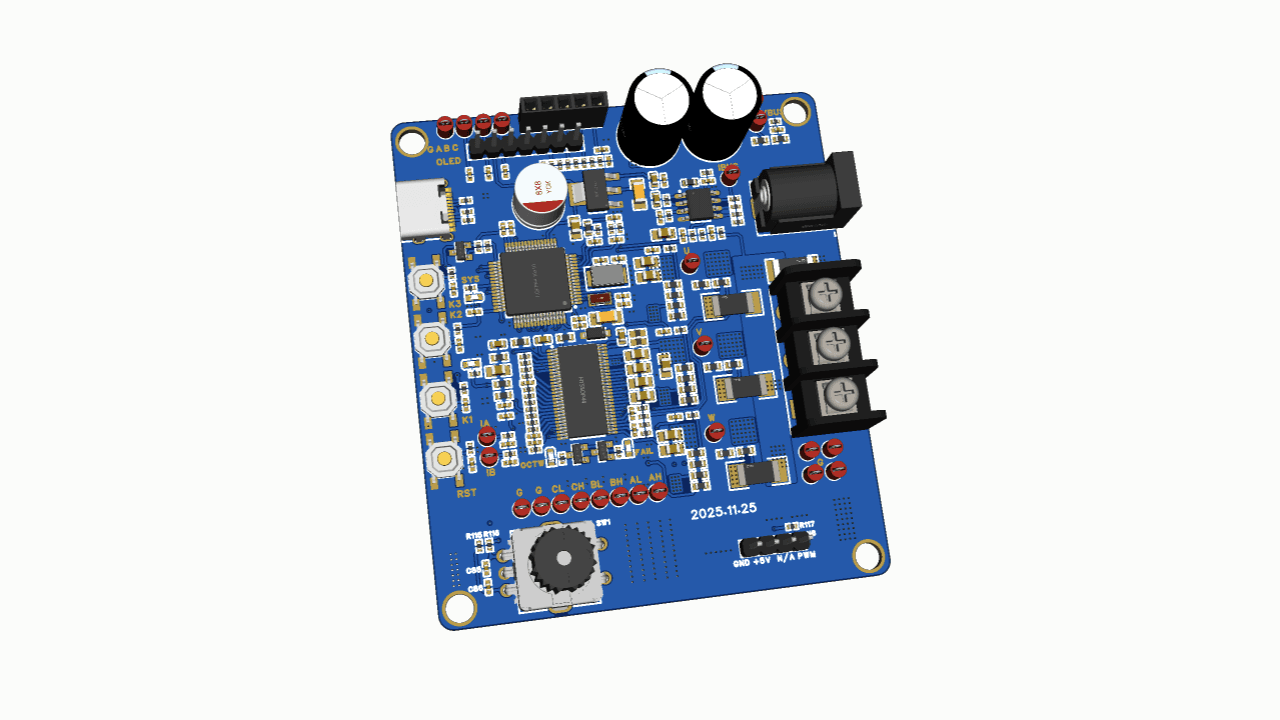

Custom Driver Board and Sensorless FOC自制驱动板与无感 FOC 实践

Status状态: Ongoing Learning Route持续学习 / 阶段原型
Timeline时间: 2025.11 - Present2025.11 - 至今

I designed and assembled an STM32F446/DRV8301 driver, adapted open-source firmware, and ran a compressor on a 12 V bus with 30 to 80 Hz open-loop commands. Sensorless handoff remains unresolved.我独立设计、装配 STM32F446/DRV8301 驱动板，适配开源固件，在 12 V 母线下用 30 到 80 Hz 开环指令带动压缩机；无感接管仍未完成。

FOCFOCMotor Control电机控制STM32F4STM32F4

Case study + public files项目记录 + 公开文件View case study查看项目记录

AD831 Active Mixer BoardAD831 有源混频器板

Status状态: Completed已完成
Timeline时间: 2025.10 - 2025.122025.10 - 2025.12

EEE307 coursework at XJTLU: an RF mixer board built around ADI's AD831 that turns a 120 MHz signal and a 130.7 MHz LO into a 10.7 MHz IF. It started from a contest-guide reference circuit and went through four PCB versions in five weeks, mostly reworking the input high-pass and the IF output.西浦 EEE307 课程作业。用亚德诺的 AD831 做了一块射频混频器板，把 120 MHz 的 RF 和 130.7 MHz 的本振混成 10.7 MHz 中频。从电赛备赛指南里的参考电路起步，五个星期改了四版 PCB，主要在折腾输入端的高通和中频输出端。

RFRFMixer混频器AD831AD831

Case study + public files项目记录 + 公开文件View case study查看项目记录

GaN Quadrotor ESC Final-Year ProjectGaN 四旋翼电调毕业设计

Status状态: Completed已完成
Timeline时间: 2025.09 - 2026.052025.09 - 2026.05

For my XJTLU final-year project I built a quadrotor ESC around INN100EA035A GaN FETs and LMG1210 drivers, with a Si MOSFET board as the reference. After five board spins, one spectacular shoot-through and an AM32 port, both boards finished a propeller-loaded comparison at matched speeds of 3000, 6500 and 10000 rpm.西浦本科毕设。我用 INN100EA035A 氮化镓功率管和 LMG1210 驱动做了一块四旋翼电调，再做一块 Si MOSFET 电调作参考。打了五次板，炸过一次很壮观的直通，移植了 AM32，最后两块板在 3000、6500、10000 rpm 三个对齐的转速下完成了带桨对比。

GaNGaNESCESCPower Electronics电力电子

Case study + public files项目记录 + 公开文件View case study查看项目记录

Seamly2D Qt Development Internship南京图灵 Seamly2D 开发实习

Status状态: Completed已完成
Timeline时间: 2025.082025.08

In a three-week internship, I brought an unfamiliar Qt codebase into operation, added local accounts and role management, and prepared a Windows installer and an unsigned macOS package for review and handoff.三周实习里，我从配置 Qt、编译陌生代码库开始，为 Seamly2D 加入本地账户和角色管理，再完成 Windows 安装包与 macOS 无签名包的演示和交接。

QtQtC++C++CMakeCMake

Case study + public files项目记录 + 公开文件View case study查看项目记录

NUEDC 2025 Simple Self-Aiming Device2025 电赛简易自行瞄准装置

Status状态: Completed已完成
Timeline时间: 2025.06 - 2025.082025.06 - 2025.08

Problem E of the 2025 National Undergraduate Electronic Design Contest: an MSPM0 line-tracking car carrying a K230 gimbal that aims a laser at a target. I captained a team of three that had to knock on seven or eight doors for a supervisor and nearly missed registration. In 84 hours we burned a core board and threw away a gimbal, and came out with a Jiangsu second prize, XJTLU's first NUEDC award.2025 年全国大学生电子设计竞赛 E 题：一辆 MSPM0 循迹小车，车上架着 K230 云台，用激光去打靶心。我当队长的三人队，找指导老师敲了七八扇门，报名差点没赶上；84 小时里烧了一块核心板、扔了一个云台，最后拿了江苏省二等奖，也是西浦在电赛上的第一个奖。

MSPM0MSPM0K230K230Line Tracking循迹

Case study + public files项目记录 + 公开文件View case study查看项目记录

Tianjin Jintie STM32 Internship天津津铁 STM32 嵌入式实习

Status状态: Completed已完成
Timeline时间: 2025.022025.02

During a month of foundational training at Tianjin Jintie, I planned my own STM32 learning sequence and combined external sensors, display, encoder, servo, and LED control in a working bare-metal demo.在天津津铁一个月的基础实习中，我自行安排 STM32 学习顺序，从外设小实验做起，最后把传感器、显示、编码器、舵机与 LED 控制接进同一套裸机演示。

STM32STM32Rail Transit轨道交通Embedded嵌入式

Case study + public files项目记录 + 公开文件View case study查看项目记录

DIY Laptop CoolerDIY 压风式笔记本散热器

Status状态: Archived Prototype原型归档
Timeline时间: 2024.08 - 2024.092024.08 - 2024.09

I built an acrylic-and-foam laptop cooler, with a Windows application sending temperatures over Bluetooth to an ESP32 fan controller. A later STM32 board reached serial control but never rejoined the complete system.我做了一台亚克力与泡棉散热器，用 Windows 程序读取温度，经蓝牙控制 ESP32 和风扇。后来重画的 STM32 板完成了串口控制，尚未重新接成完整的温控整机。

ESP32ESP32STM32STM32PCBPCB

Case study + public files项目记录 + 公开文件View case study查看项目记录

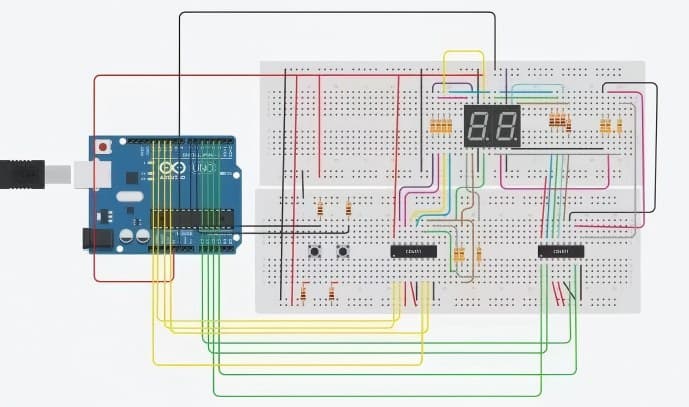

Arduino Breadboard Two-Digit Seven-Segment CounterArduino 面包板两位数码管计数器

Status状态: Completed已完成
Timeline时间: 2024.04 - 2024.052024.04 - 2024.05

For MEC104 Group A17, I handled most of the two-digit counter’s wiring, firmware, and debugging. Testing the display segments and measuring switch contacts resolved faults that code changes had not.我承担 MEC104 A17 组两位计数器的大部分搭建、编程与调试。数码管接法和六脚按键先后出问题，我通过逐段试灯、测量开关通断，把显示、暂停和复位调通。

ArduinoArduinoEmbedded嵌入式Seven-Segment Display数码管

Case study + public files项目记录 + 公开文件View case study查看项目记录

Arduino Smart Car Line-Tracking KitArduino 循迹小车焊接与控制实训

Status状态: Completed已完成
Timeline时间: 2024.03 - 2024.042024.03 - 2024.04

I assembled and tested an Arduino car kit, learned to trace its power, sensing, and motor circuits, and helped tune the team’s car to a top-5-percent finish in the campus lap-speed challenge.我从裸 PCB 开始装配 Arduino 小车，逐项检查电源、传感和电机功能，再参与赛道调试；小组最终进入校内圈速挑战前 5%。

ArduinoArduinoEmbedded嵌入式Line Tracking循迹
